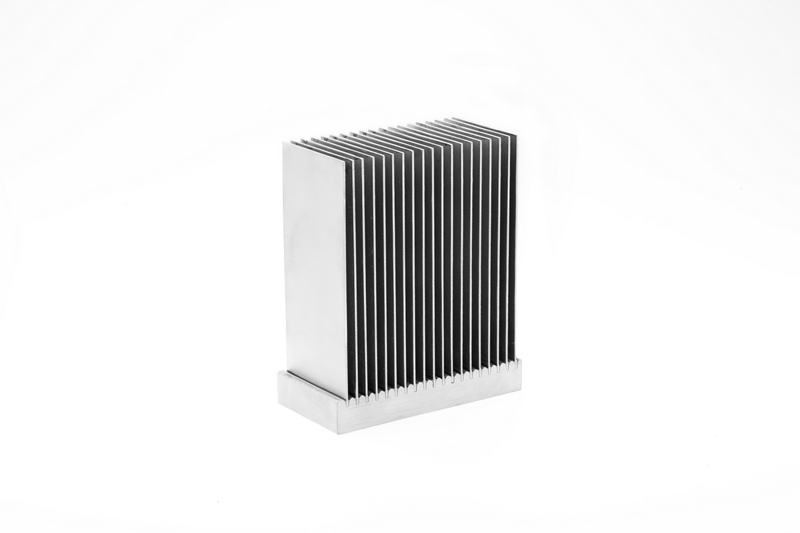

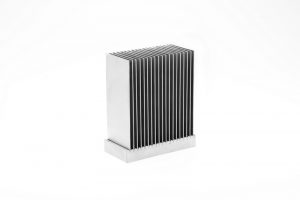

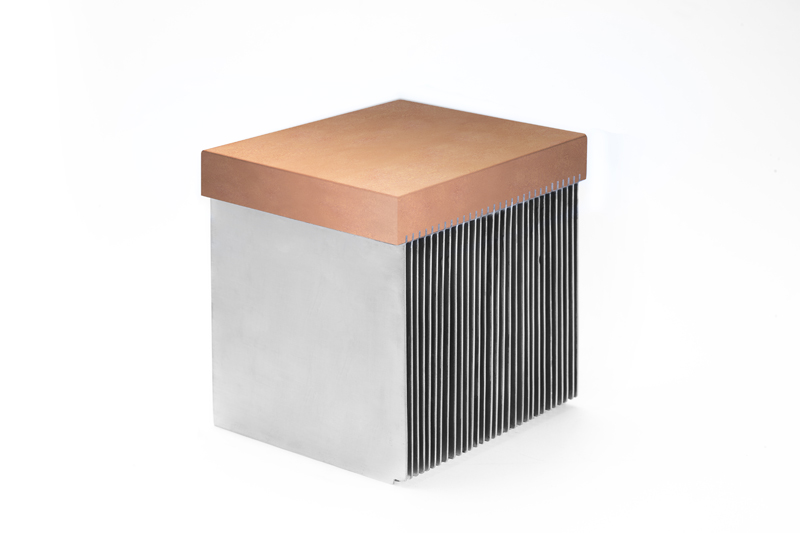

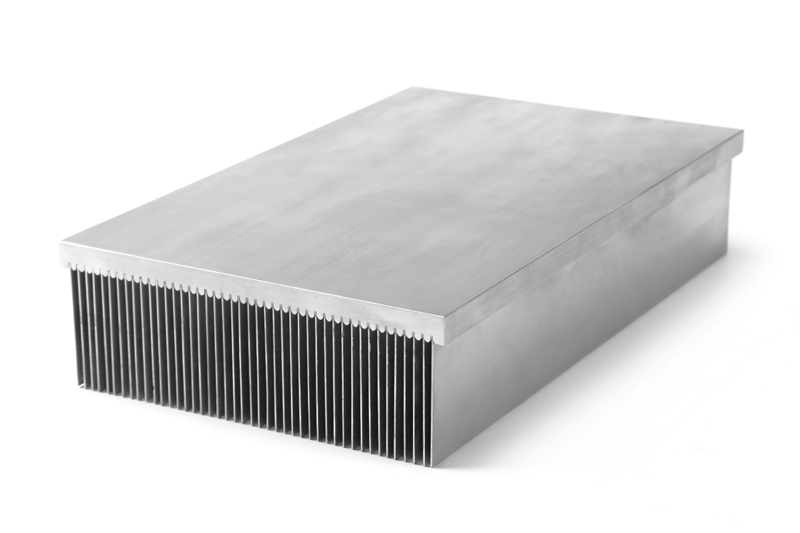

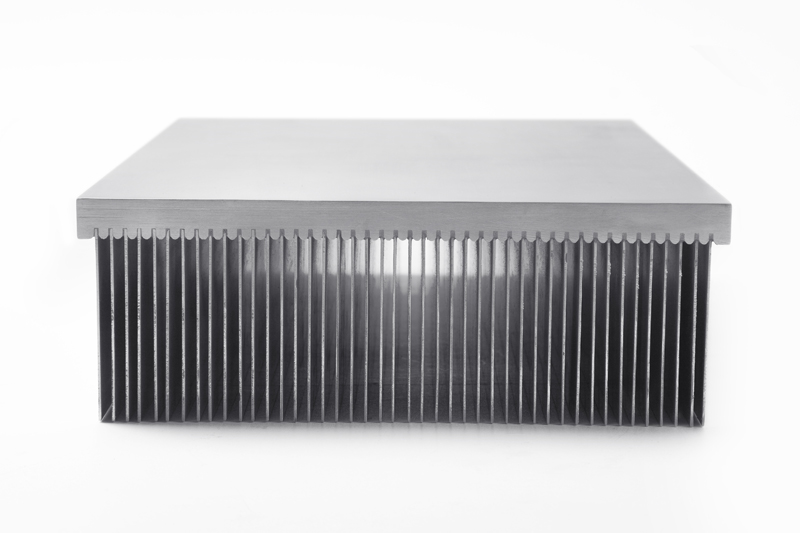

- Made by bonding aluminium or copper sheets to an extruded or machined base (aluminium or copper)
- Extremely high values of thermal dissipation achieved with dense fin spacing and large fin height to width ratios.
- Eliminates the need of forced convection in many applications with strict IP (ingress protection) rules. However, forced convection can be accommodated for high temperature applications.
- Sizes: Width: Any width upto 800 mm
- Standard width: 121 mm 215 mm, 240 mm, 315 mm, 400 mm.
- Length: up to 1000 mm.
- Height: 0-150 mm.
- Fin thickness: 0.5 mm – 6 mm
- Finish: Degreased and buff metal finish.
- Customized CNC machining (drilling and tapping, milling) can be provided for mounting components. All heat sinks supplied with flatness of 10µm/100 sqmm.
